Automatic Electric Grinding Machine for Reuse Mining Drill Bit Button
Package Size 122.00cm * 122.00cm * 190.00cm Package Gross Weight 700.000kg Electric Grinding Machines for Reuse Drill Bi
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | EGM3.0 |
Application | Construction |
Disc(Wheel) Type | Grinding Disc |
Material | Metal |
Working Style | High-speed universal |
Disc Diameter | 100mm |
Variable Speed | With Variable Speed |
Function | Sharpening Button Bit |
Button Diameter | 6mm-25mm |
Operation | Fully Automatic |
Rotation Speed | 24000rpm |
Transport Package | Plywooden Case |
Specification | 1600*1100*2200mm |
Trademark | BESTLINK |
Origin | China |
HS Code | 84609090 |
Production Capacity | 200 Sets/Month |
Packaging & Delivery
Package Size 122.00cm * 122.00cm * 190.00cm Package Gross Weight 700.000kgProduct Description

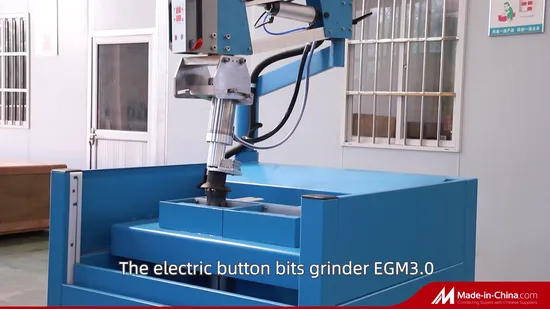

Electric Grinding Machines for Reuse Drill Bit ButtonWith over 20 years of experience in the field of drilling tools, including making button bit grinding tools, Xiamen Bestlink Factory Co.,Ltd. is one of the most professional and reliable manufacturer you are looking for in China.1. Button Bits Grinding MachineEGM3.0 Button Bit Grinder is a high powerful tool for worn button bit sharpening. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.
Specification:
Max.Spindle Speed | 24000 rpm |
Rated power (motor) | 3.0 kw |
Electric power data | single phase, 220V/50Hz |
Working air pressure | 5-7 bar (100 psi) |
Water consumption | 2-4 L/min |
Max. water pressure | 4 bar (60 psi) |
Water hose diameter | 6 mm |
Coolant / fushing medium | water |
Overall size H*W*D | 900*630*1500 mm |
Weight excl. packaging | 550 kg |
Weight incl. Packaging | 610 kg |
Transport dimensions: | 1220*1150*1800 mm |
Sound level | 92 dB(A) |

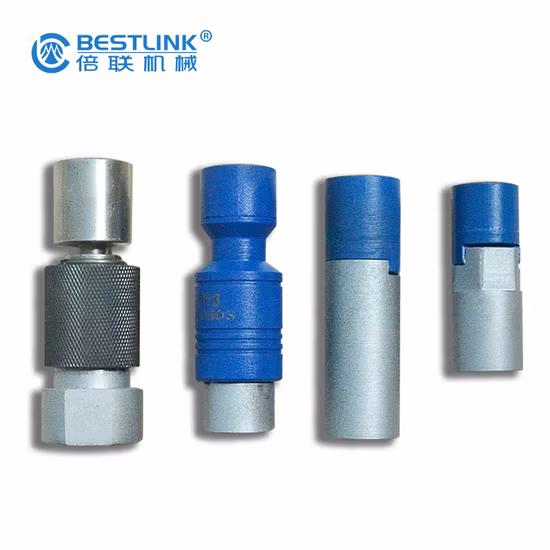

Advantage of BESTLINK Button Bits Grinder:1). Automatic grinding-----makes it's easy to operate and save labour.2). Electric power ----- no need to equip air compressor and spend more money3). Quick chuck-----it's suitable for difference type of grinding cups.4). Cooling system-----a recycling cooling system makes a safe and sustaining working.2. Grinding pinsThrough changing the quick chuck, the operator can use different types of grinding cup(as called grinding pin) on this automatic grinding machine, such as:a.the cups with WING drive(8mm shank)b.San-drive grinding cup with 9mm shankc.Atlas Copco's 55-drive grinding cupd.the cups from CME with hex-drive.
For bit's button shape | For bit's button size (mm) |
spherical buttons / ballistic buttons | 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 |
bit's body steel removal | 7-8 9-10 11-12 13-14 15-16 17-18 19-20 |
Other grinding machine
We have other type of drill bit grinding machine for your choice, including hand held type, semi-automatic, electric type and chisel bit grinding machine etc.
Packing and Shipping
The button bits grinding cups will be packing into plywooden case and diamond grinding pins can be packaged by cartons, or wooden case, or according to the client's special request.
Timely shipment can be made upon our negotiation.
Related Products
-
83 Type 10′′ Common Bench Vises Fixed with Anvil
-

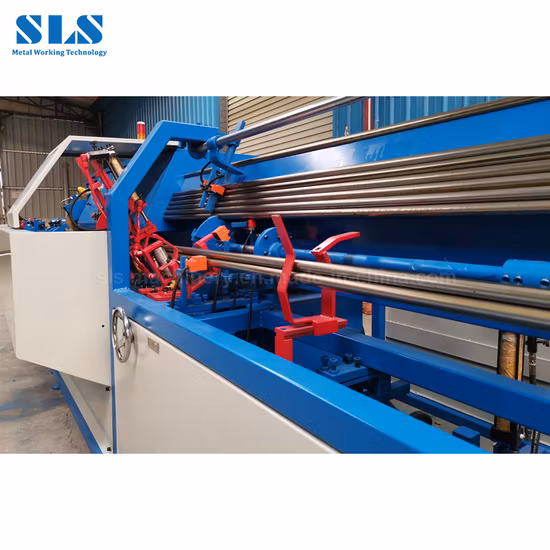

Copper Aluminum Stainless Steel Metal Iron Pipes Automatic Hydraulic Cold Saw Cut off Cutter Ms Profile Auto CNC Tube Cutting Machine with Debur and Chamfering
-
4 Seater Golf Cart with Dump Bed in China Performance Golf Carts
-

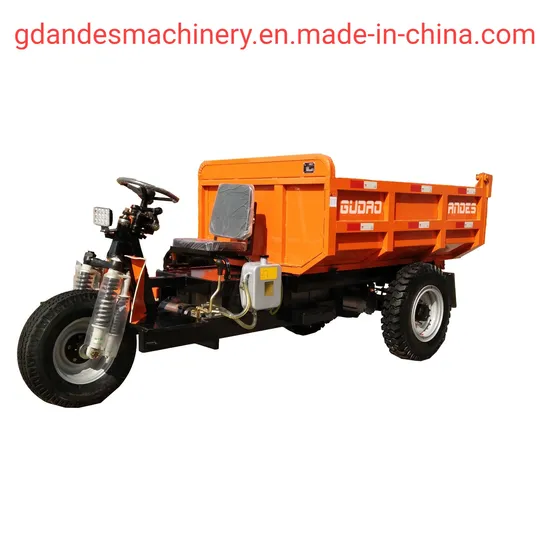

New Disel Mini Dump Truck/Mini Wheel Dumper Mine Tipper Truck/China Mining Dump Truck Wheel Tippernew Design Garden Mini Dumper for Sale/4 Wheel Electric Cart
